Concrete Floor Thickness Requirements for Car Hoist Setup

Crucial Considerations for Installing a Car Hoist in Your Garage

If you’re contemplating the installation of a car hoist in your garage, it is imperative to ensure that your concrete floor meets the essential specifications. A robust and stable foundation is not merely vital for the effective operation of the hoist; it is also essential for the safety of your vehicles and anyone using the equipment. By adhering to proper preparation techniques and guidelines, you can significantly enhance both the performance and longevity of your car hoist installation, making it a worthwhile investment in your garage.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist, thereby minimising the risk of any potential cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially up to 150mm (6 inches), to guarantee optimal performance and ensure safety during operation, especially when lifting heavier vehicles.

How to Accurately Assess the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a fundamental aspect in the safe installation and operation of a car hoist. Several factors must be evaluated when determining the appropriate depth for your slab to ensure that it can adequately withstand the loads imposed during use. Understanding these critical factors can help you avoid costly mistakes and enhance the safety of your garage setup, thus ensuring a reliable lifting experience.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, comprehending the total weight that your concrete floor must support is essential. This assessment involves not only the weight of the vehicle but also the weight of the hoist itself, which can add significant load to the floor structure. Understanding these dynamics is crucial for ensuring your installation is safe and compliant with industry standards.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg to the total load. Moreover, it is prudent to account for extra weight as a safety margin to guarantee that the structure can handle unforeseen circumstances effectively. This careful consideration protects both your investment and your safety.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally adequate. However, if you plan on lifting substantially heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation. Engaging a structural engineer is a wise decision, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness needed based on your unique circumstances and requirements.

Exploring Different Types of Car Hoists and Their Specific Concrete Thickness Requirements

It is vital to recognise that various types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners who are looking to incorporate a car hoist into their garage. Understanding the differences between these types can significantly impact your planning and installation process.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the hoist operates safely and efficiently, without risking damage to the concrete or the vehicle.

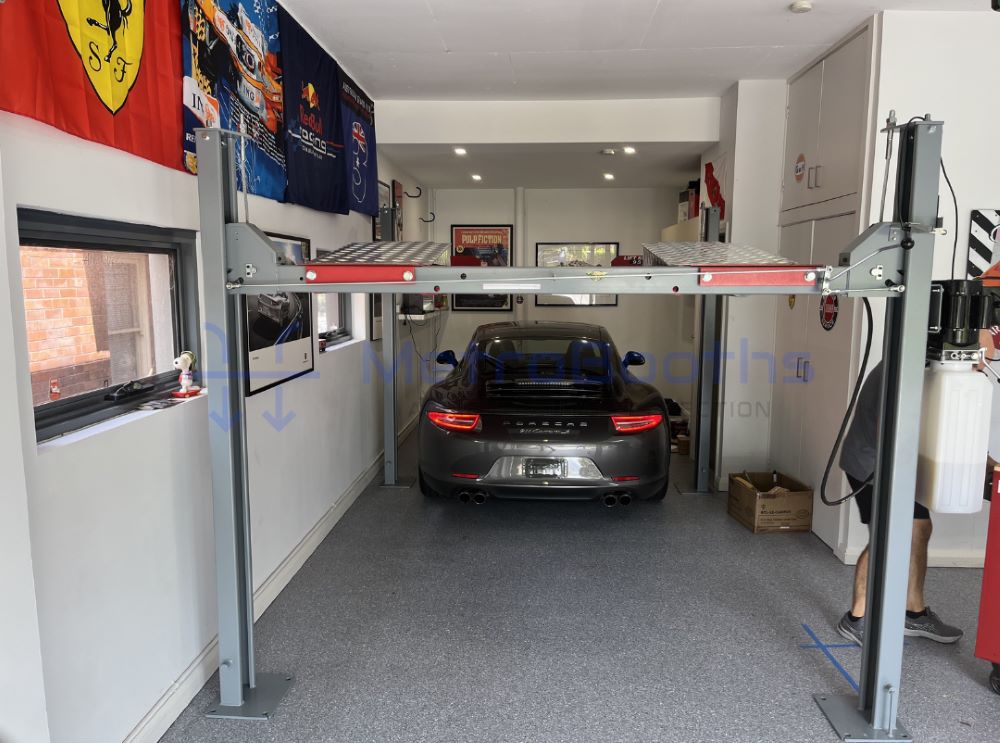

Conversely, four-post lifts tend to distribute weight more evenly over a larger area. This allows them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is crucial for optimising your installation strategy and ensuring that you choose the right hoist for your needs.

Always consult the manufacturer's specifications for the hoist you are considering, as they will usually outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is vital for achieving optimal performance and extending the life of your hoist installation. Keep in mind that these recommendations serve as general guidance; your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift.

Understanding the Critical Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as crucial as its thickness when installing a car hoist. Stronger concrete can often be successfully utilised at a thinner depth while still providing adequate support for heavy loads. This is especially important in the context of a car hoist installation, where safety is paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. Utilizing quality materials ensures that your installation will withstand the test of time and heavy use.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could allow you to utilise a thinner slab while ensuring it can effectively support heavy loads during operation. For most home garages, SL82 mesh presents a reliable option, providing sufficient strength for the majority of car hoists without incurring excessive costs, which is particularly important for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, enhancing the longevity and performance of your installation.

Essential Installation Factors for Ensuring Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist. This diligence ultimately protects your investment and enhances the efficiency of your garage operations.

Vital Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use. This attention to detail is essential for a successful installation.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This preparation helps to prevent future issues that can arise from insufficient support.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can assess its condition accurately. This proactive approach can save you from potential complications in the future.

Critical Ongoing Maintenance Following Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality and safety of your hoist. Regular inspections are key to maintaining the integrity of your installation.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time, leading to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan. These simple measures can significantly enhance the durability of your installation.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage. Implementing a regular maintenance schedule is a wise strategy for long-term success.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Common Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity on this important topic.

What is the minimum concrete thickness needed for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, which is important for ensuring reliability.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, thereby ensuring peace of mind during use.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, ensuring a secure lifting environment.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during operation. This careful consideration is crucial for effective functionality.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring a reliable setup.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, providing you with peace of mind.
